Jim T-stand

"Pedestal table"

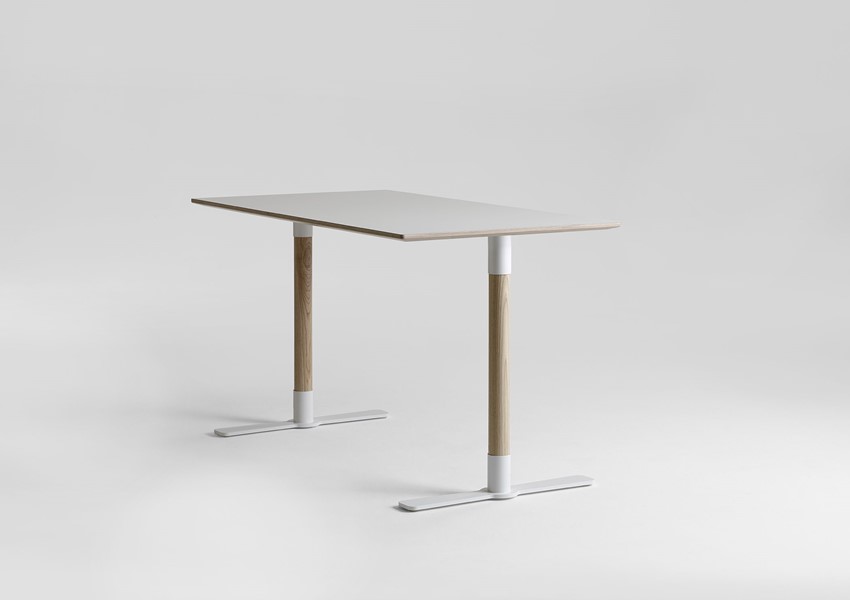

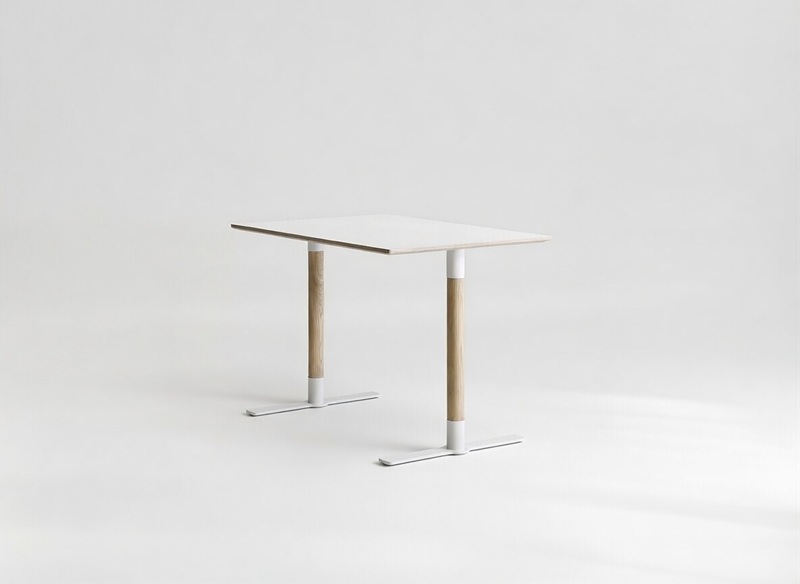

Jim T-base, height 730 mm, is a rectangular and practical table that provides efficient use of the room’s floor space. The T-base optimizes the space for chair placement between the wooden columns and provides room for two to three seats per long side. The column is made of solid wood in ash or oak, and the table can be customized for different projects. Metal parts are supplied as standard in RAL 9003 – Signal White, with the option of any RAL color.

See also the pedestal table Jim T-base in height 900 mm.

5-year warranty and 10-year spare parts warranty.

Konfigurera Information

Tillverkad med ansvar

Environmental Product Declaration

Free distance between legs

Measure A: 92 mm

Formula:
Table length – (2 × A)

This provides the actual space for placing chairs between the table legs.

The formula is applicable for tops up to 1800 mm in length. Please feel free to contact us if you need help calculating for longer tops.

This table is designed for easy customization and glue-free assembly, supporting a circular furniture flow. A minimalist and modern pedestal table with a frame-free design, it features solid wood pillars and elegant T-feet in metal, maximizing seating along the table’s long side. It also includes the option for a hanging hook for chairs or stools.

The tabletop core is crafted from 24 mm environmentally certified birch plywood, reformable and durable. The seamless top is available with a 1.5 mm thick re-sandable veneer, HPL, DT Linoleum, Kayar, or a custom finish. The underside of the tabletop is pre-drilled with M6 inserts for simple assembly and disassembly, enhancing the table’s circular properties.

The tabletop edge showcases visible birch plywood to minimize material use, with a straight 12 mm edge and a 30 mm bevel for a thin, sleek design. The edge radius is 2-3 mm, and the corner radius is 10 mm, providing a soft tactile feel.

The solid wood pillar, Ø580 mm, is encased by a 100 mm-high sleeve on the footplate and mounting plate. Pre-installed felt pads ensure stability and protect the floor from wear.

The metal base features a two-winged footprint design (600 mm), tapering towards a centered sleeve (R60). It is finished in RAL 9003 or a custom color. A recessed rectangular mounting plate includes a groove to enable chair or stool hanging. The tabletop mount is reversible, allowing two positions for the pillar relative to the table’s short side.

The tabletop is assembled without glue, using bolts into pre-installed M6 inserts for easy mounting and disassembly.

The tabletop is detachable with hand tools, allowing reassembly after refurbishment or part replacement, maintaining full functionality and stability. With a free space of >700 mm from the floor to the underside of the tabletop, this table is highly functional. It comes with a 10-year warranty and a 10-year spare parts guarantee.

Assembly/disassembly manual
See files below

CO2 emissions per kg product (kg CO2-eq./kg): 2,8
Climate impact of the entire product analysed (kg CO2-eq./product): 93,9
(Reviewed product: Jim T pillar table, 1400x750 mm, High pressure laminate, pillar H730 in ash, metal foot 600 mm)
Reconditioning: Excellent for reconditioning

Eco-label type 1: Swedish Möbelfakta Swedish Möbelfakta for public environments
Eco-label type 3: Environmental product declaration
(Reviewed product: Jim T pillar table, 1400x750 mm, High pressure laminate, pillar H730 in ash, metal foot 600 mm)
